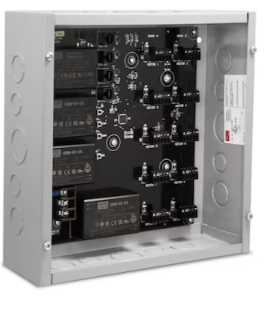

Somfy SDN PowerConnect™ Surface-Mount Panel

Efficient Power and Data Distribution

•  Isolated motor ports support up to 240 feet of power and data wiring to individual low-voltage intelligent motors.
• Used to add 10 isolated motor ports and two isolated device ports to an SDN bus segment.

Improved Design

• New mounting options add flexibility to installation.
• Smaller form factor – approx. 50% smaller volume.
• Sequence button allows for testing of motor wiring directly at the power panel.
• System status LEDs monitor Bus power, communication, and end-of-line notification.
• Supplies power to Device Ports from internal power supplies.
• Miswire protection.
• Automatic segment termination.
• Replaces all previous motor power panels for SDN motors.

Simplified Installation

• The in-wall or on-wall mountable enclosure offers separated line- and low-voltage areas for ease of installation.
• Front cover includes keyed lock handles.

Perfect for Multiple Applications

• Could be used in small SDN systems with two control devices and 10 individual motors as a stand alone solution.
• cULus
